W-Element Model Support

Nexxim supports the import of W-element models via an import wizard.

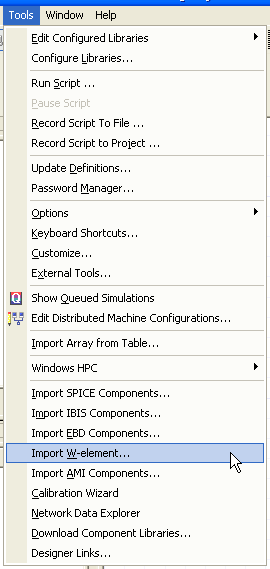

To open the wizard, select Import W-element from the Tools menu:

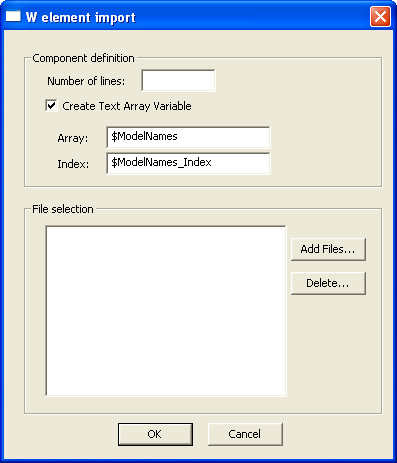

The W element import dialog opens:

Enter the Number of lines for the W-element.

Click the Add Files button to browse to a directory containing the data files for the W-element.

You can select multiple files. If Create Text Array Variable is checked, Designer creates a text array index to store the multiple files. The model is then created as a parametric model.

Click OK. Designer notifies you that the component has been created:

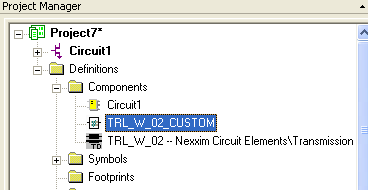

You can verify that the component is in the Project tree:

You can rename the component as desired. To place the component in the schematic, select it in the Components list, drag it into the schematic, and press ENTER to place the W-element.

If the model was created as a parametric model, simulation setups can sweep the entries in the text array index ($ModelNames_Index in the example).
