Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
AMI Analysis >
   Running AMI Analysis from the Schematic Editor >
       Set Up the AMI Analysis


Set Up the AMI Analysis

From the Schematic Editor, perform the following steps to set up and run a AMI analysis using Nexxim, and view the results.

1. Right-click on the Analysis menu in the Project window to open a menu.

2. Select Add Nexxim Solution Setup from the menu, then slide the cursor to select AMI Analysis from the subordinate menu.

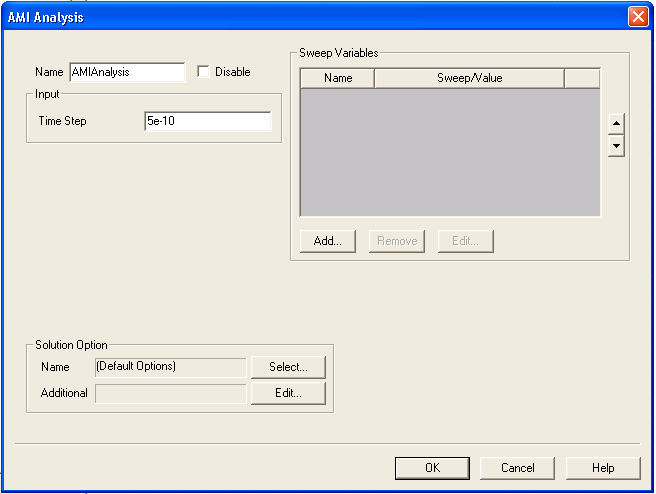

3. The AMI Analysis dialog box appears.

4. Type an Analysis Name (or accept the default name, “AMIAnalysis”).

5. For most simulations, leave the Disable box unselected (the default setting). Selecting this box lets you store multiple solution setups for later use.

6. Set the Time Step parameter to control the time step for applying the impulse response.

7. Optionally, use the fields in the Solution Option panel to add AMI options.

•  Click the Select button on the Name field to open the Select Solution Options dialog.

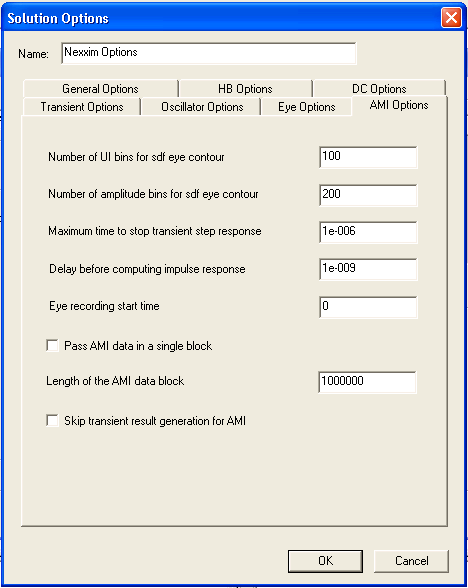

•  Click New to create a new option set. The Solution Options dialog box appears.

•  Use the Name field to name the new option set.

•  Use the AMI Options tab fields and checkboxes to set any desired options.

•  Click OK to return to the AMI Analysis dialog.

•  For more information, see AMI Analysis Options.
