Add Nexsys and Nexxim Components

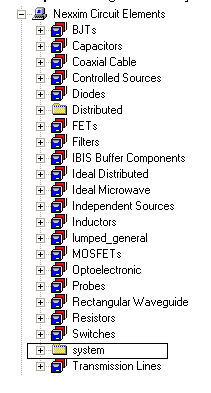

The Nexsys functional (behavioral) components are in the System subfolder under Nexxim Circuit Elements.

Place one or more of the Nexsys components in the Nexxim design. Nexxim automatically sets up the Nexsys component for discrete time domain simulation.

When mixing Nexxim and Nexsys components, two important issues are the selection of sources and the need for special interface elements.
