       AMI Time Domain Waveforms


AMI Time Domain Waveforms

The report can show the Time Domain waveform at four points in the circuit:

•  The Initial Waveform shows the Piecewise Linear data input to the transmitter, including any jitter.

•  The Waveform After Source shows the output from the transmitter.

•  The Waveform After Channel shows the input to the receiver.

•  The Waveform After Probe shows the output from the receiver.

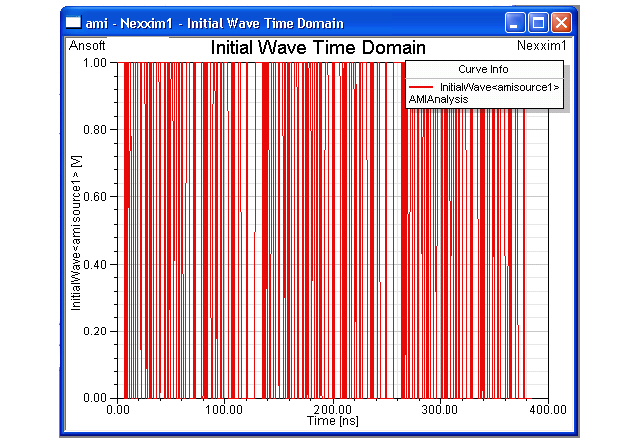

To plot the impulse responses, select Create Standard Report>Rectangular Plot. Select your AMI Analysis as the Solution; Time as the Domain; Voltage as the Category; InitialWaveform, WaveformAfterSource, WaveformAfterChannel, or WaveformAfterProbe as the Quantity; and <none> as the Function. The chart below shows the Initial Waveform.

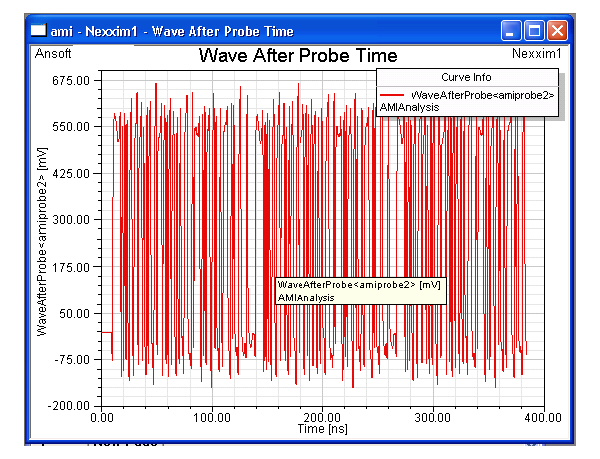

This second chart shows the Waveform After Probe in the Time Domain:
