       AMI Impulse Response


AMI Impulse Response

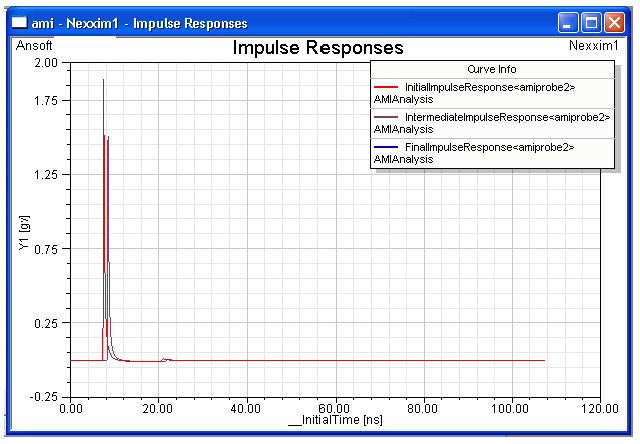

To plot the impulse responses, select Create Standard Report>Rectangular Plot. Select your AMI Analysis as the Solution; Initial Response as the Domain; Voltage as the Category; InitialImpulseResponse, IntermediateImpulseResponse, or FinalImpulseResponse as the Quantity; and <none> as the Function. The chart below shows all three impulse responses.

The Initial Impulse Response is the one generated by Nexxim. The Intermediate Impulse Response reflects any modifications made by the AMI transmitter at initialization. The Final Impulse Response reflects any further modifications made by the AMI receiver at initialization. In the chart above, the Intermedialte and Final responses are identical.
