Ansoft Designer / Ansys Designer 在线帮助文档：

Netlist Editor User Guide >
   Starting the Netlist Editor >
       Loading a Nexxim Netlist from a File


Loading a Nexxim Netlist from a File

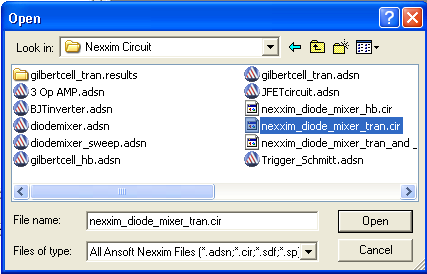

To load a design from an existing Nexxim Circuit netlist file, use the File > Open command. Select the “All Ansoft Nexxim Files” extension in the Files of type window of the Open dialog.

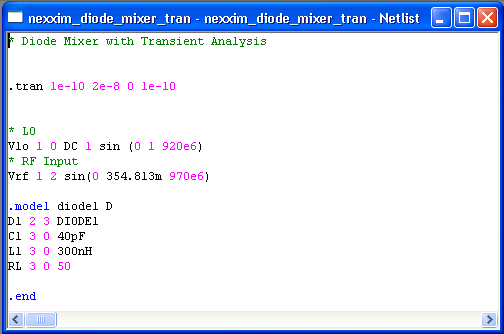

The file opens in the Netlist Editor window.

[spacer]

The Netlist Editor display is colored to provide easy identification of variables, values, comments, bookmarks, and other elements of the netlist.
