Ansoft Designer / Ansys Designer 在线帮助文档：

Netlist Editor User Guide >
   Starting the Netlist Editor >
       Creating a New Nexxim Netlist


Creating a New Nexxim Netlist

The Netlist Editor is automatically started when you insert a new Nexxim netlist design. To create and edit a new Nexxim Circuit Netlist design:

1. Click on File > New to create a new Project.

2. Do one of the following:

• Click on Project > Insert Circuit Netlist in the top menu bar

• Right click on the Project icon in the Project Manager, then select Insert > Insert Circuit Netlist

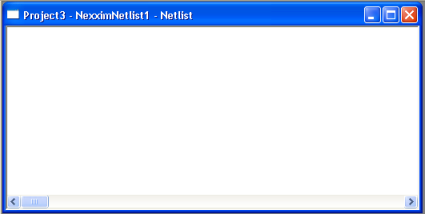

3. A new Netlist Editor window opens in the Designer design area.
