Ansoft Designer / Ansys Designer 在线帮助文档:


Using Component Libraries >
Using the Script Editor >
   Starting the Script Editor


Starting the Script Editor

To invoke the Script Editor do one of the following:

• Double-click a script listed beneath the Definitions/Script folder

• Select Footprint > Edit Script when the Footprint Editor is active

• Open a project and select Tools > Edit Configured Libraries > Scripts. When the Edit Libraries dialog opens, use its controls to open the Script Editor.

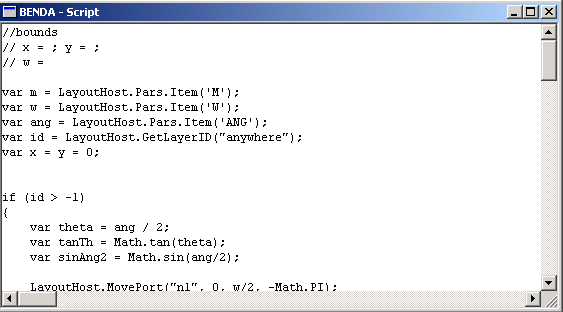

This opens the Script Editor window. Text displayed within the editor is highlighted to allow for easy identification of the various structures of the displayed script.
