The Advanced Tab

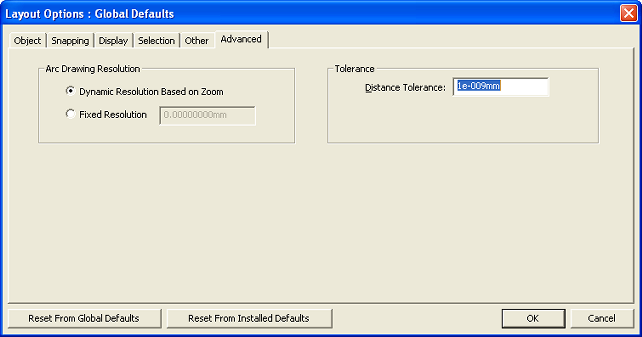

The Advanced tab controls internal tolerance and resolution values:

• Tolerance — Specifies the tolerance used internally by the layout editor. Distances are considered equal if they differ by no more than the tolerance value. Default is 1e-9 mm. Normally, this tolerance should not be changed.

• Arc Drawing Resolution — By default, arc resolution is dynamically adjusted depending on the zoom factor. You can instead specify a fixed resolution in the current drawing units (default units are mm).
