Layout Editor User Guide >
Printing a Layout

Printing a Layout

To print the layout that is in the active window:

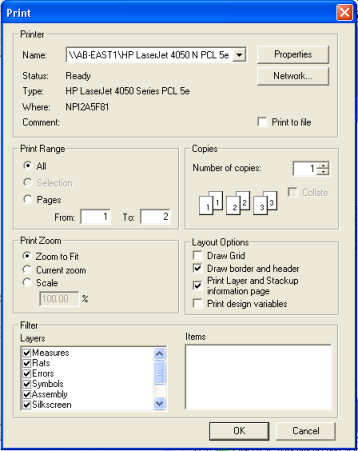

1. Select File > Print to open the Print dialog:

2. Use the Print Range, Copies, and Print Zoom controls to specify how much to print and how you wish the print to appear. In the Layout Options panel, you can specify whether or not to draw the grid, border/header, the layer and stackup information, and design variables. In the Filter panel, you can toggle the printing of any layer and selected items.

3. Click OK to print the layout and close the Print dialog.

Setting up the Page Layout

To set up the page layout before printing:

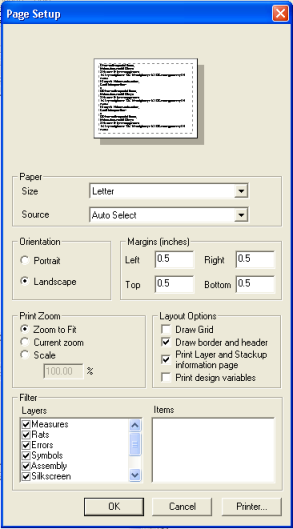

1. Select Page Setup from the File pulldown on the Ansoft Designer top menu bar. The Page Setup dialog box opens.

2. Use the Paper, Orientation, Margins, and Print Zoom controls to specify how you wish the print to appear. In the Layout Options panel, you can specify whether or not to draw the grid, border/header, layer and stackup information, and design variables. In the Filter panel, you can toggle the printing of any layer and selected items.

3. Click OK to close the Page Setup dialog box with your settings.

4. Select Print Preview from the File menu to see a preview of the print.
