       Nets

Nets

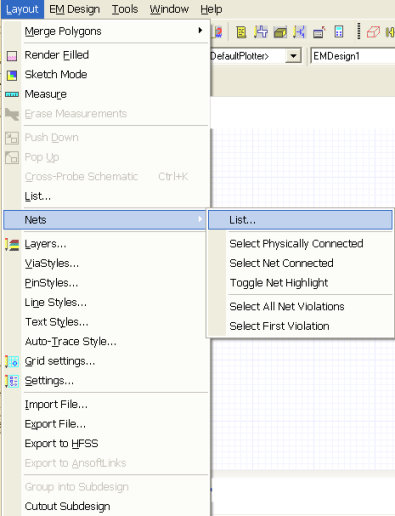

Layout > Nets opens a submenu:

Use the commands on the submenu to select nets and view net violations.

List

Opens the Design List dialog with the Nets tab selected. The dialog lists the name of each net, along with Color and Highlighting controls. Each net has an assigned color. The color is used when the geometry is colored by net or when a net is highlighted. Each net has a checkbox to activate Highlighting. A highlighted net is displayed opaque in Layout3D when transparency is active.

Select Physically Connected

Selects all primitives, vias and pins physically connected to the currently selected items within the currently active design instance (selections in Layout cannot cross multiple levels of hierarchy). Vias and pins with plated holes are followed across layers. Connectivity through primitives in subcircuits and footprints is also followed (unless the subcircuit is a blackbox, in which case it owns its own independent stackup).

Selected Net Connected

Selects all items on the same nets as the currently selected items.

Toggle Net Highlight

Toggles the highlighting for all objects in the same nets as the currently selected items.

Select All Net Violations

Starting at the selected objects, the physically connected objects are checked for net violations. An error is reported for all physically connected objects belonging to a different net and the item in error is selected.

Select First Violation

Starting at the selected objects, the physically connected objects are checked for net violations. As soon as a physically connected object belonging to a different net is detected, an error is reported and the item in error is selected. At this point the check stops.
