Ansoft Designer / Ansys Designer 在线帮助文档:


Importing and Exporting Data >
   ODB++ Translator >
       Running AnsTranslator from Within Designer


Running AnsTranslator from Within Designer

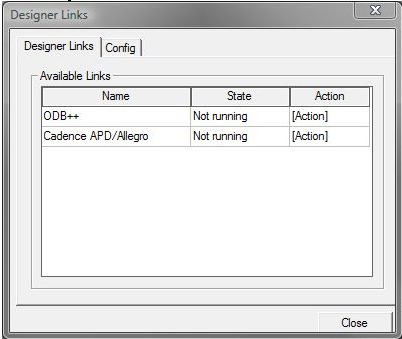

The ODB++ translator is a Designer Link to an external DLL that can be accessed through the Designer Links dialog by clicking Tools > Designer Links.

[spacer]

If the ODB++ line is not present in the Designer Links tab, select the Config tab to load the ODBLinks DLL and enable it (ODBLinks.dll). For more information, see Designer Links.



To translate an ODB++ job file or folder, click on the [Action] cell of the ODB++ line in the Designer Links tab of the Designer Links dialog above and choose "Import" from the dropdown menu. This opens the following dialog.

[spacer]

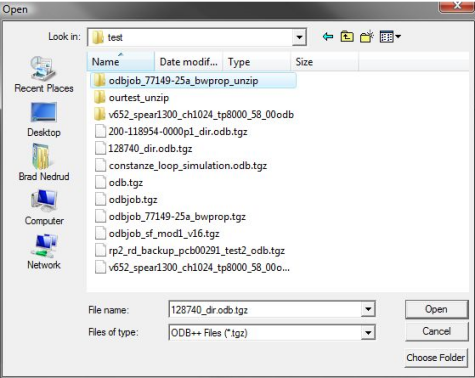

Select a folder in the display window of the Open dialog. Next, click the Choose Folder button at the lower right to translate the selected folder.

• If you wish to use a control file, be sure it has the same name as the ODB++ file/folder (with extension .xml) and is located in the same folder.

• If necessary, the ODB++ file is decompressed and then translated to an ANF file plus a LOG file, then the ANF file is read into Designer.

• Translation warnings and error messages written to the log file also appear in the Message Window.

• The temporary ANF and LOG files will be automatically deleted.





Note

There is no progress feedback during translation, and some translations can take more than 30 minutes, depending on the complexity of the design.
