NC Drill/Router Export

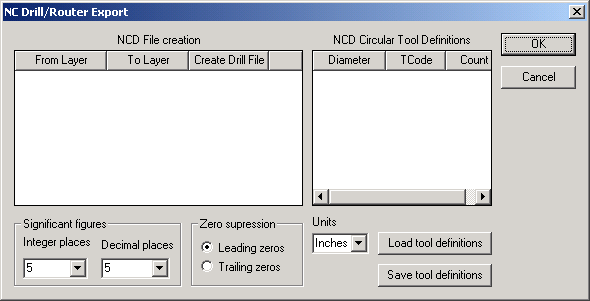

To export layout data, on the Layout menu, click Export File, this opens the Save As dialog. Selecting NC Drill File opens the NC Drill/Router Export dialog.



[spacer]



• Click Load tool definitions to load and view definitions.

• Click Save tool definitions to save definitions.

• Select the desired Zero suppression setting.

• Select the desired number of Significant figures for Integer and Decimal places,
and click OK.
