Ansoft Designer / Ansys Designer 在线帮助文档:


Importing and Exporting Data >
   Importing Data >
       Importing IBIS EBD Files


Importing IBIS EBD Files

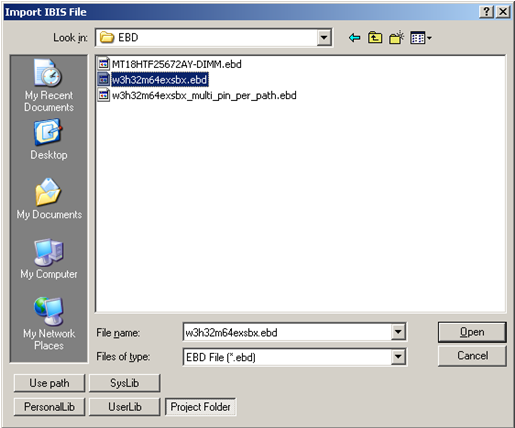

Designer IBIS support allows you to import.ebd files that contain board descriptions in the form of paths. When EDB file paths are imported, a corresponding Nexxim component is created. This option is only available for Nexxim designs and is invoked via Tools > Import EBD Components which opens the following dialog.

[spacer]

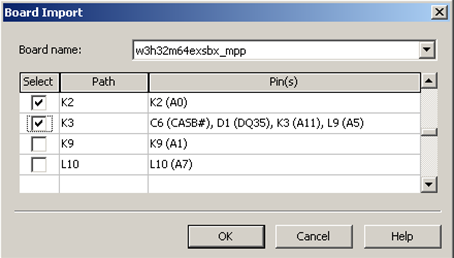

After you select an .ebd file and click Open, the following dialog opens which allows you to selectively choose the boards and paths you wish to import from the file.

[spacer]



The Board name pull-down menu displays all the boards contained in the .ebd file; when a board is selected, the display grid updates to show the paths and pins contained on that board. The display grid also lists the various signal names for each pin in parenthesis. After selecting the desired paths and clicking OK, components are generated and then displayed on the Components tab and in the Definitions/Components area of the project tree. When placed on the schematic, the generated components resemble the following.

[spacer]
