Ansoft Designer / Ansys Designer 在线帮助文档:


Importing and Exporting Data >
   Exporting Data >
       Exporting to a Nexxim State Space File


Exporting to a Nexxim State Space File

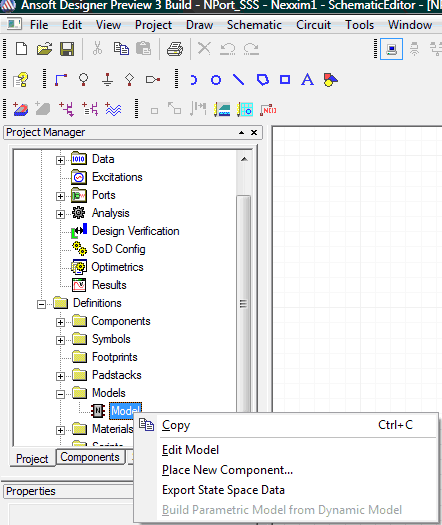

You can export data to a Nexxim State Space File (*.sss) by selecting Export State Space Data from the right-click menu under the Definitions/Models folder in the Project Manager. The Export State Space Data menu item is enabled only if the model has state space data available. State space data is available when an SSS file is chosen as the data source or when the model has an underlying SSS file associated with it.



[spacer]

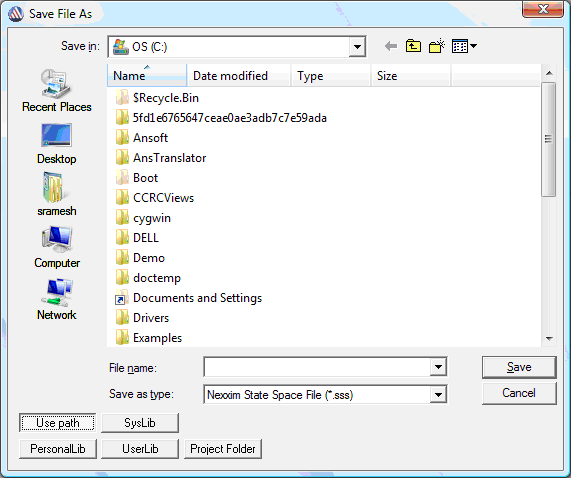

Choosing Export State Space Data opens a Designer Save File As dialog.



[spacer]



When you provide a filename/location, the .sss file is generated and updated with the port names in the model. For related information, see N-Port Data Symbol Tab.
