Ansoft Designer / Ansys Designer 在线帮助文档：

Importing and Exporting Data >
   Exporting Data >
       Exporting Netlist Files


Exporting Netlist Files

To export the netlist representation of a design to a file, make the Netlist Editor the active window.

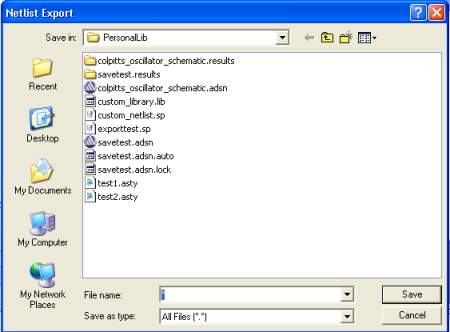

1. Click on Netlist in the top menu bar, and select Export. The Netlist Export dialog opens:

2. In the Save in field, browse to the directory where the netlist file is to be saved,

3. In the File name field, enter the complete name of the file, including the extension if any.

4. Click Save to save the netlist file and close the dialog, or click Cancel to cancel the export operation without saving anything.
