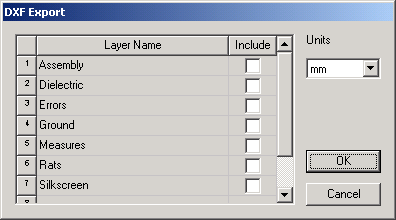

Importing and Exporting Data > DXF ExportTo export layout data, on the Layout menu, click Export File, this opens the Save As dialog. Selecting AutoCad DXF File opens the DXF Export dialog.
![[spacer]](1p.gif){kind=small}
• Use the Units default of mm or choose another from the pull-down menu (cm, ft, in, km, meter, mil, nm, uin, um). • Check an Include box for each Layer Name you wish to save and click OK. During export, a polygon with voids is converted into a single polygon with no holes where bridges connect the voids to the outer contour. Text that is Hershey font will be exported as polygons, that is, the text is thickened.
