Ansoft Designer / Ansys Designer 在线帮助文档：

The Designer Desktop >
Desktop Windows and Features >
Design Area >
3D Layout Viewer Window

3D Layout Viewer Window

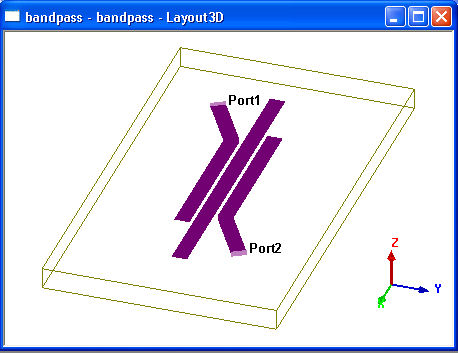

Once you have defined a layout and its layer stackup, you can view the entire structure in 3D by doing either of the following:

• On the Product menu, click 3D Viewer.

• Right-click the design in the project manager, and then click 3D Viewer.

The view can be rotated, zoomed, spun around, and animated. However, no editing can be performed in the 3D Viewer. To edit the layout, return to the Layout Editor.

For more information, see 3D Layout Viewer.
