           NPort Model


NPort Model

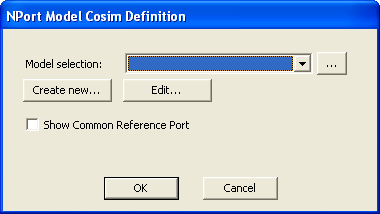

In the Solver on Demand tab of the Edit Component dialog, when you choose NPort Model from the model pulldown menu and click Add, the following cosimulation definition dialog appears. (The same dialog appears when you click Edit with a previously added NPort Model name selected).



[spacer]



• Use the Model Selection pulldown menu, or click the browse button to select a different symbol. Valid model types are Citifile (.cit), Planar EM/HFSS v6.0+ (.szg), Ansoft Designer (.flp), and Touchstone Format [ (.s*p), (.y*p), (.z*p), (.tou) ].

• If desired, Create New or Edit the model.

• If desired, click Show Common Reference Port.



Click OK to save your changes and close the dialog, or click Cancel to close the dialog without saving any changes.
