Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Grounded Coplanar Waveguide Elements >
Selecting a Grounded Coplanar Waveguide Substrate at the Component Level

Selecting a Grounded Coplanar Waveguide Substrate at the Component Level

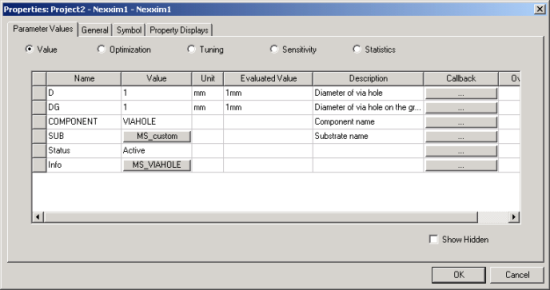

To specify a custom substrate type, or to change to a different predefined substrate type, you must make the assignment individually for each component. Double-click on the distributed element to open the Properties window:

The SUB property identifies the substrate that is currently applied to the element. In the example above, a custom substrate type named “MS_custom”appears as the value of the SUB property.

To change to a different substrate type, click on the SUB property button, select the desired substrate name as the value of the SUB property, then click OK.

Note

All distributed elements in a given design must use the same substrate type.
