Coaxial Cable, Partially Filled with Reference

Coaxial Cable, Partially Filled with Reference

Coaxial Cable Netlist Format

The netlist syntax for a coaxial cable, partially filled with reference is:

Axxxx n1 n2 n3 n4 COMPONENT=coax_cable_partfilled
+ DI=val DO=val P=val ER1=val ER2=val
+ TAND1=val TAND2=val THETA=val RB=val

n1 and n2 are the nodes attached to the cable. n3 and n4 are the reference nodes. The entry COMPONENT=coax_cable_partfilled is required.

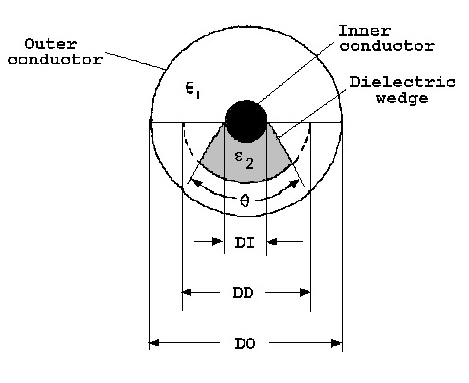

**Coaxial Cable, Partially Filled Parameters**
Parameter	Description	Unit	Default
DI	Diameter of inner conductor	Meter	50
DO	Inner diameter of outer conductor	Meter	0.0127
DD	Diameter of electric wedge	Meter	0.0127
P	Physical length of cable	Meter	0.0127
ER1	Dielectric constant of the material filling the main line	None	1.0
ER2	Dielectric constant of the dielectric wedge	None	1.0
TAND1	Dielectric loss tangent of the material filling the main line	None	0.0
TAND2	Dielectric loss tangent of the dielectric wedge	None	0.0
THETA	Angle of the wedge	Degree	0.0
RB	Conductor resistivity	mOhm-cm	0.0

Coaxial Cable, Partially Filled Netlist Example

Acable1 net_34 net_27 DI=0.001 DO=0.003 DD=0.002 P=.10
+ ER1=1 ER2=2.6 THETA=30 RB=1.64
+ component=coax_cable_partfilled
