Farfield of a parabol antennaIntegral Equation Solver Examples
General Description
In this example the farfield of an antenna is calculated.
Structure Generation

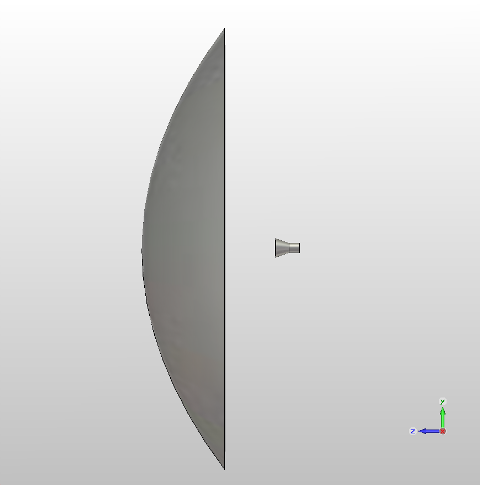

The structure is imported from a *.sat file.
Solver Setup
A waveguide port is defined as excitation. The exciting mode is calculated automatically.
Post Processing

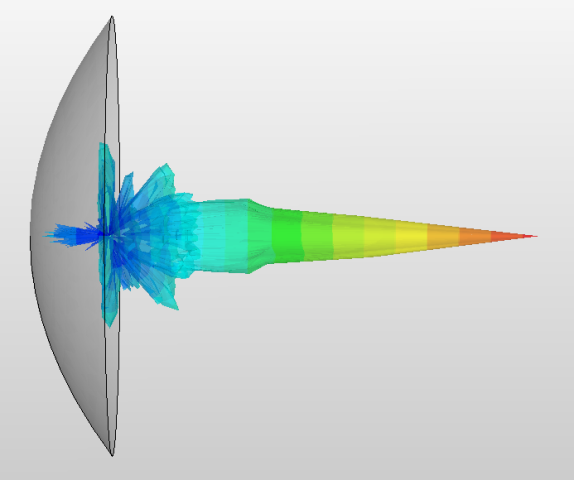

As a result the farfield of the antenna is calculated.
