Simplify Sheet Metal

Modeling: ToolsShape ToolsSolid to Sheet ConversionSimplify Sheet Metal

With this action you can simplify sheet metal body to face. Simplification works only on sheet metal bodies, where the thickness is constant throughout the body.

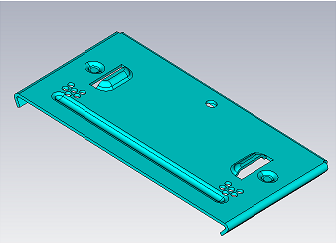

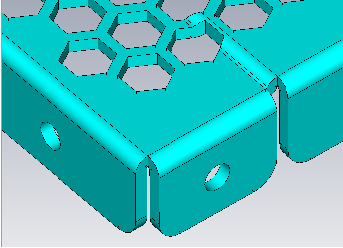

Simplify Sheet Metal

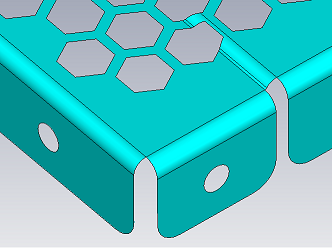

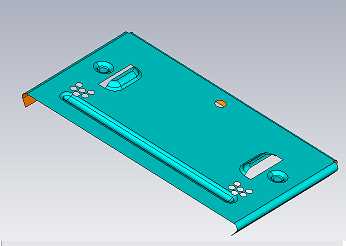

Simplify Sheet Metal





Extract  larger face:  Check here if you want to extract  larger side of sheet metal body after simplification.

Keep original  solid:   Check here if you want to keep the original solid after simplification, if not the original solid  will be deleted.



Tolerance frame

Thickness: Within this specified tolerance axial thickness can vary across the sheet metal body.

Angular: Within this specified tolerance angular thickness can vary across the sheet metal body.



OK

Accepts the input and closes the window.

Preview

Previews the outcome of the current settings. This helps to visualize  the simplified sheet.

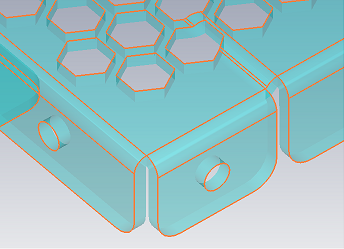

Largest Face

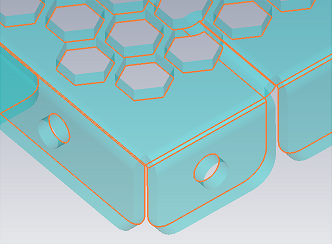

Second Largest Face





Cancel

Closes this dialog box without performing any further action.

Help

Shows this help text.
