Graphics / Save Video
Macros MacrosGraphicsSave Video

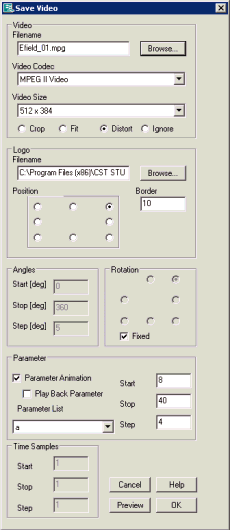

This macro can store animations of e.g. time varying fields taken from
the main plot window. The three different file formats available are:
Please note: The macro requires the ImageMagick package installed in
the global macro folder in the sub folder ImageMagick, which is created
and installed automatically during the installation of CST STUDIO SUITE.
Video frame
Filename
鈥?The field Filename and the button Browse
allow to change the name and location under which the video will be stored.
Unless a different location has been specified, the video will be stored
in the current project folder
Video Codec
鈥揟he video format can be chosen from within this combo box.
Video Size
鈥?There are different resolution settings available which can be specified
using this combo box.
Crop / Fit
/ Distort / Ignore 鈥?Please choose either of these options by selecting
the related radio button in order to map the picture to the new format.
Logo frame
Filename
- The field Filename and the button Browse
allow to specify the logo that will be placed within the video. By default
a CST logo will be used.
Position
鈥?Defines the general position of the logo within the video.
Border
鈥? Specifies the distance between logo and border.
Angles frame (This
frame is not activated if a time monitor is selected.)
Start [deg]
鈥?Defines the phase the macro starts recording the video.
Stop [deg]
鈥?Defines the phase the macro stops recording the video.
Step [deg]
鈥?Defines the phase difference between two consecutive video frames.
Parameter frame (This
frame is not activated if a frequency monitor is selected.)
A parameter animation can be performed using
a pre-defined parameter of the Parameter List.
Start
鈥?Defines the start value of the parameter the
macro starts recording the video.
Stop
鈥?Defines the end value of the parameter the macro
stops recording the video.
Step
鈥?Defines the parameter value step width between
two consecutive video frames.
Time Samples frame (This
frame is not activated if a frequency monitor is selected.)
Start
鈥?Defines the time step the macro starts recording
the video.
Stop
鈥?Defines the time step the macro stops recording
the video.
Step
鈥?Defines the time step width between two consecutive
video frames.
Rotation frame
Fixed
鈥? In addition to the time-variation of the displayed field, the structure
itself can be rotated during the recording. The rotation center is taken
from the radio button selected. The rotation feature is suppressed, if
this check box is activated (default).
OK
This button completes the saving of the video.
If the chosen video codec is linked to an existing video browser, the
new animation will be displayed automatically.
Cancel
Aborts the export of
the video.
Preview
This button shows a preview of the first video
frame based on the current settings, if the file extension is linked to
an existing video browser.
Help
Shows this help text.
Hints: Please select the field
monitor that shall be recorded first and adjust all plot settings according
to your preferences.

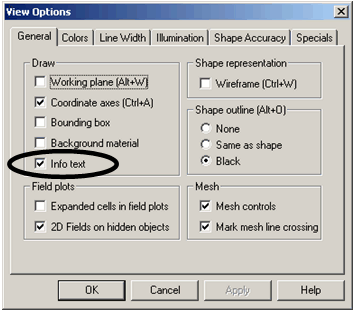

You may switch off the additional text information
in the plot window which is typically displayed by default in the lower
left corner. This can be done in the View-Options (Alt-V or View->
View Options鈥? via Info text.
To keep the file sizes of the pixel-oriented
video files small, you can also consider decreasing the size of the drawing
window by not maximizing it.
During the video recording, the main plot window
must be in the foreground without any popup dialogs in front.
See also
Graphics
/ Save Image, Preloaded
Macros Overview
