Splitter (sensitivity-yield analysis)Frequency Domain Analysis Examples
General Description

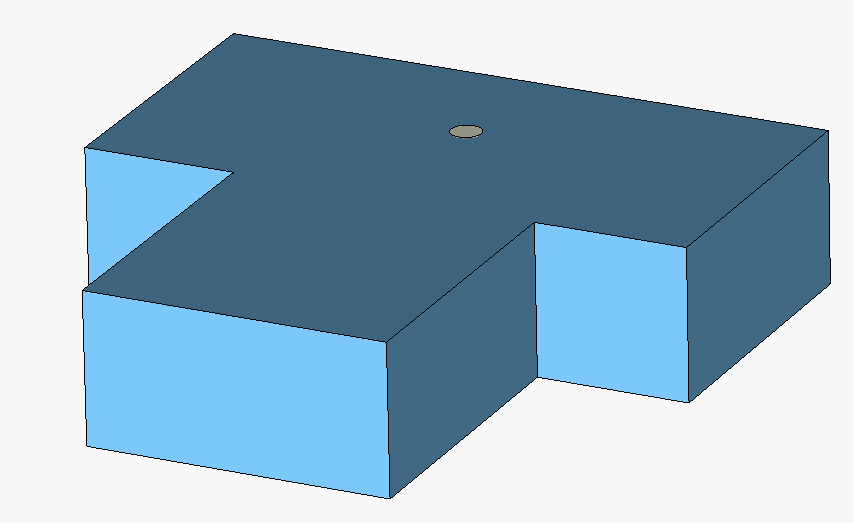

This waveguide splitter is build up by a metallic
box, which can be constructed via the macro Home:
Macros This example demonstrates the S-parameter sensitivity and yield analysis.
Structure Generation
The most important parts of the structure are modelled by bricks and cylinders. For the real world structure there is a metallic box that encloses the structure. For the simulation, this box is omitted, because it can be simulated by electric boundary conditions. In order to calculate the S-parameter sensitivity of the radius of the cylinder, a face constraint has to be defined on that cylinder. For more details please look at the online help.
Mesh Settings
The mesh type was left at "Tetrahedral Mesh" in the frequency domain solver dialog. Otherwise, default mesh settings are used.
Yield Analysis Settings
The settings are located in Post Processing:
Yield Analysis
Solver Setup
This example is simulated using the frequency domain solver. The sensitivity analysis is enabled for the radius of the cylinder. The broadband frequency sweep is enabled, with as many frequency samples in the range from 8 GHz to 10 GHz as required. The adaptive mesh refinement frequency sample is placed automatically at 10 GHz. The solver reaches the scattering parameter convergence threshold after calculating eight frequency samples. The progression of the scattering parameter sweep
error measure is shown in the 1D Results
Please note that the solver becomes increasingly faster in subsequent runs, which is due to an improved initial solution.
Post Processing
The scattering parameters and the sensitivity of the S-parameters w.r.t. the cylinder radius can be accessed through the 1D Results folder in the navigation tree. After the successful solver run the yield analysis
of S11 is computed via Post Processing:
Yield Analysis
HFSS视频教程 ADS视频教程 CST视频教程 Ansoft Designer 中文教程 |
|
Copyright © 2006 - 2013 微波EDA网, All Rights Reserved 业务联系：mweda@163.com |
|
.gif)
Construct
. The Performance Specifications tab defines in this case a bound of 0.162 for the
magnitude of S1,1 from 8.6 to 9.2 GHz. The signicant digits of this bound are limited by the
accuracy chosen for the mesh adaption and for the interpolative frequency sweep.
