Microstrip CapacitorFrequency Domain Analysis Examples
General Description

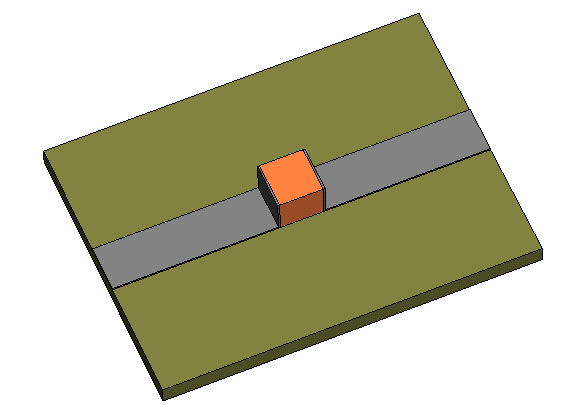

This example shows a microstrip line with a plate capacitor inside. It demonstrates the usage of waveguide ports for microstrip devices and symmetry planes for symmetric devices. The results are focused on the extraction of a SPICE compatible network model for a frequency of 0.5 GHz. The same structure has been simulated with the general purpose hexahedral and tetrahedral frequency domain solvers.
Structure Generation
The modelling of the structure starts with the definition of the units and the background material, in this example air (normal). In this dialog the distance between the microstrip line and the bounding box is also defined. Then the definition of the substrate layer follows. The ground plate has not to be modelled with an extra shape because an electric boundary condition on the bottom of the substrate can be used. Afterwards the two stripline feedings were modelled. The plate capacitor was created using two metallic plates and a relative high dielectric (epsilon relative = 12). Last but not least comes the definition of the waveguide ports. They are extended to full range in order to get the desired Quasi-TEM Modes. For this symmetric structure a magnetic symmetry plane was introduced that speeds up the solver. Some elements have been defined parametrically with the following parameters:
Mesh Settings (General Purpose Hexahedral Solver)
The mesh type was set to "Hexahedral Mesh" in the frequency domain solver dialog.
Solver Setup
The SPICE parameter network extraction can either be done as a postprocessing step after the calculation or the field calculation can be done automatically from the SPICE parameter network extraction. This example shows the second way: The frequency domain solver was started by pressing the Calculate button in the SPICE parameter network extraction dialog. The main settings for the solver are made in the frequency domain solver parameters dialog. For this example the Save all field results check box was activated in order to receive the electric and magnetic fields at the calculation frequency. Since a single frequency sample will be calculated, the broadband frequency sweep is disabled.
Post Processing
As a result you can view the scattering parameters
as well as the electric and magnetic fields for the calculation frequency.
With the resulting S-Parameters a SPICE compatible network model considering
one cascade for a frequency of 500 MHz can be extracted by opening the
Post Processing:
Signal Post Processing
