PlateAsymptotic Solver Examples
General Description

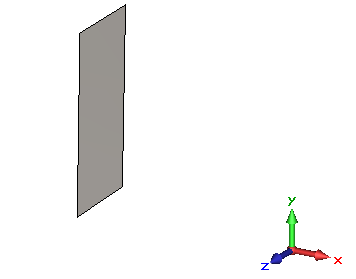

This simple example illustrates how the asymptotic solver can be applied to calculate the bistatic RCS of a simple PEC plate. The calculation uses a single incident plane wave from an angle of theta = 90 degrees and phi = 0 degrees.
Solver Setup and Post Processing
The RCS is calculated in a single farfield plane (phi=0 degrees) for a varying theta angle using one degree steps.
The results can be accessed from the Farfield folder in the navigation tree. Please note that there is also a farfield comparison in the 1D Results folder where the results of the asymptotic solver are compared to the ones obtained by running the integral equation solver. The agreement of the results is excellent for this structure, since all relevant electromagnetic effects (such as edge diffraction) are considered by the asymptotic solver.
