Helix Antenna

Integral Equation Solver Examples

$image\Helix_Antenna.gif$

General Description

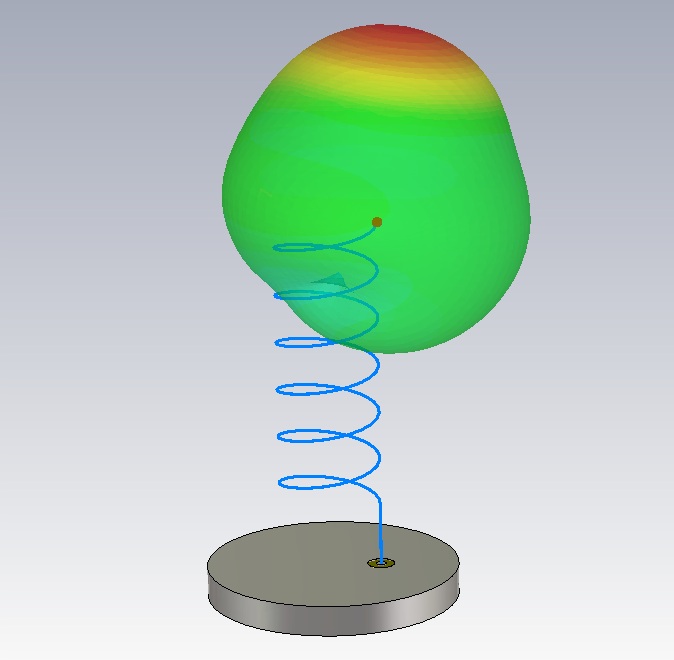

This example shows the S-parameter and farfield calculation of a helix antenna. The antenna is fed by an off centered coaxial line.

Structure Generation

The helix is created by the online construct macro Home: Macros Construct Coils 3D Linear Helical Spiral. The geometry of the structure can be controlled by the parameter found in the global Parameter List. The wires are modeled infinitely thin for better solver performance. If you want to compare with the transient solver it is recommended to use Solid wire model option in the wire properties.

Solver Setup

For the excitation a wave guide port at the beginning of the coaxial line is defined. Its reference plane is located at the beginning of the helix. Open boundary conditions are used to simulate the open space around the structure. A farfield monitor at one of the resonance frequencies allows the visualization of the farfield after the simulation.

Post Processing

The scattering parameters and the time signals can be accessed through the 1D Results folder in the navigation tree. In addition, the voltage standing wave ratio is calculated by activating Post Processing: Signal Post Processing S-Parameter Calculations Always Calculate VSWR. The VSWR gives information about the impedance mismatch of the antenna over the chosen frequency range. It may be accessed through the navigation tree entry 1D Results VSWR.

The farfield can be found in Farfields farfield (f=0.58) [1].
