One-way Transmission DeviceTransient Analysis Examples - S-Parameter Calculations: Waveguide Devices
General Description

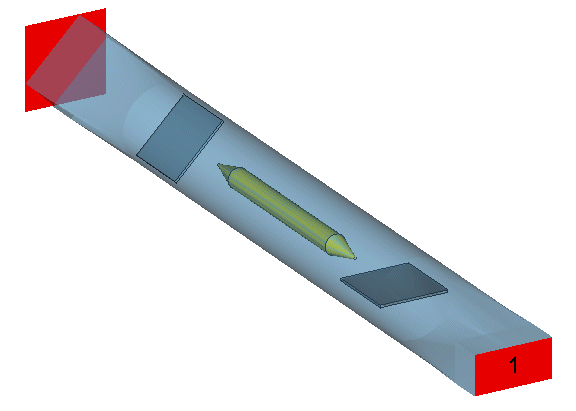

In this example the characteristic behavior of a one-way transmission device is presented by the calculation of the corresponding S-parameters. The main structure consists of the rotation domain, containing a centered and magnetized ferrite rod as well as two by 45 degrees rotated damping plates. A propagating wave is rotated inside the circular waveguide by 45 degrees because of the gyrotropic behavior of the biased ferrite material. This means that a wave travelling in one direction is not absorbed in the damping plates, while the wave travelling in reverse direction will be strongly absorbed. This is ensured by the non-reciprocal character of the ferrite, rotating the fields in the same direction, independently of the propagating direction. The definition of various field and energy monitors offers different visualizations of this wave propagation.
Structure Generation
The one-way transmission device is a waveguide structure and thus the corresponding waveguide template is chosen to define the PEC boundary and background material as well as the units settings. The solid shapes are constructed by creating bricks and cylinders and the application of the loft functionality. The anisotropic and dispersive material character of the biased ferrite is defined by the corresponding layer parameters, here referred to the SI-system, however, it is also possible to define the parameters in Gauss units.
Solver Setup
Two waveguide ports are defined at the ends of the given waveguides to perform the S-parameter calculation. The excitation signal is a Gaussian shaped pulse referring to the frequency range from 9 to 12 GHz. In order to get an additional visualization of the non-reciprocal wave propagation a power flow monitor is defined at an appropriate operation frequency of 10.6 GHz.
Post Processing
The resulting time signals and the corresponding scattering parameters of the transient calculation are listed in the navigation tree in the folder 1D Results. Regarding the absolute value of the S-parameters the non-reciprocal wave propagation can be analyzed. At the frequency 10.6 GHz the energy excited at port No.1 is coupled to port No.2, while in the reverse direction the energy is absorbed in the damping plates. This result can also be visualized by plotting the monitored power flow, which can be found in the folder 2D/3D Results.
