Eye Diagram

Transient EM/Circuit Co-Simulations







General Description

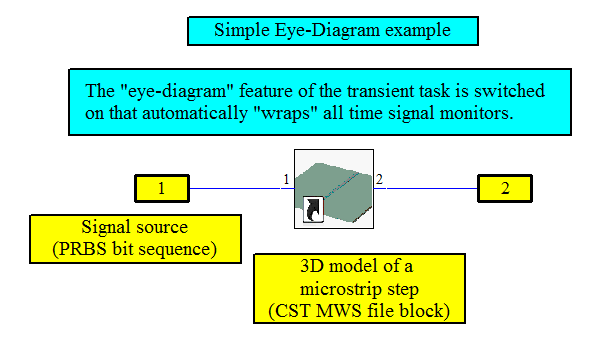

This example calculates eye-diagrams for voltages and currents monitored by the probes P1 and P2. As excitation signal a pseudo-random bit sequence (PRBS) is defined for port No.1. Port No.2 just represents a load impedance.



Model Description



The model is a simple microstrip step modelled in CST MICROWAVE STUDIO© and imported via a CST MICROWAVE STUDIO file block.
