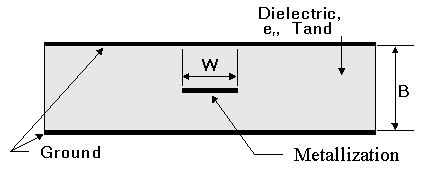

   Stripline Media Definition

Stripline Media Definition



[spacer]




Keyword

Description

Unit

Default

Range

label

Substrate name

none

Required

String

SL

Medium identifier keyword

none

Required

No associated value

B

Distance between ground planes

m

Required

(0,¥)

ER

Dielectric constant of substrate

none

Required

[1,128]

TAND

Dielectric loss tangent

none

0

[0,0.1]

metallization

Metallization definitions



0

See “Metallization”



Netlist Form

.SUB label SL B=val ER=val [TAND=val] [metallization]

Notes

The medium identifier keyword SL should be entered immediately following the label.

Netlist Example

.SUB SUB1 SL B=1.25mm ER=2.4 TAND=0.004 MET1=AU T1=5um RGH=1um

(This example includes metallization definitions described earlier in this chapter.)
