   Air Bridge of Rectangular Cross Section (JUMP)

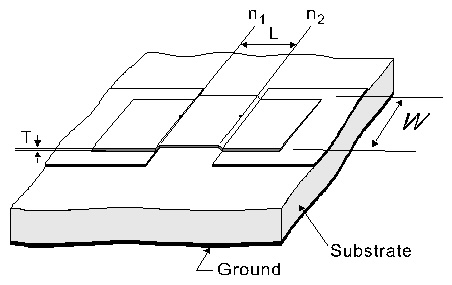

Air Bridge of Rectangular Cross Section (JUMP)



[spacer]






Properties

Description

Unit

Default

Range

W

Width of jump wire

meter

Required

³ 0

T

Thickness of jump wire

meter

Required

³ 0

L

Length of jump wire

meter

Required

³ 0

R

Resistivity of cross-over metal

micro-Ohm ∗ cm

2.44

> 0

H

Height of air bridge above ground plane

meter

Required

>0



Notes



Netlist Form

JUMP:NAME n1 n2 W=val T=val L=val [R=val] H=val

Netlist Example

X_2 1 2 B1BJUMP
.subckt B1BJUMP 1 2
JUMP:2 1 2 W=5MIL T=1MIL L=10MIL H=5MIL
.ends
.NWA F= 0 1 1KHZ 1MHZ 1GHZ 10GHZ 40GHZ
.end

References
