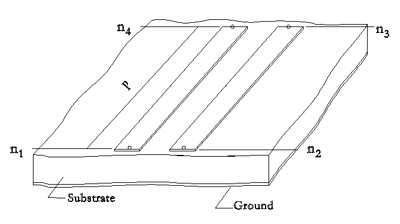

Coupled Line, Physical Length (CPL)



[spacer]






Properties

Description

Units

Default

Range

ZE

Even mode impedance

Ohms

Required

³ 0

ZO

Odd mode impedance

Ohms

Required

³ 0

KE

Even mode effective dielectric constant

none

Required

³ 0

KO

Odd mode effective dielectric constant

none

Required

³ 0

P

Physical length

m

Required

³ 0

AE

Even mode attenuation in dB/m

none

0.0



AO

Odd mode attenuation in dB/m

none

0.0



F

Reference frequency for AE and AO

Hz

1GHz

³ 0



Notes

Note that for the odd-mode parameters, the second character is the letter O, not the number zero (0).

Netlist Form

CPL:NAME n1 [n2] [n3] [n4] ZE=val KE=val ZO=val KO=val
+ P=val [AE=val] [AO=val] [F=val]

Netlist Example

CPL:CPL1 1 2 3 4 ZE=60 KE=4 ZO=40 KO=5 P=11MM AE=0.0001
+ AO=0.00015 F=2GHZ

References
