Ansoft Designer / Ansys Designer 在线帮助文档：

Schematic Editor >
   Starting the Schematic Editor >
       Configuring Schematic Editor Options >
           Wiring

Wiring

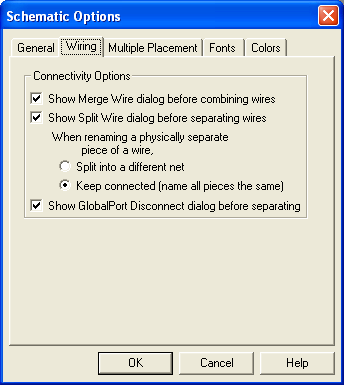

When you select the Wiring tab in the Schematic Options dialog, the following
dialog is displayed:

The following controls are available:

• Show Merge Wire, when selected, displays the Merge Wire dialog before combining wires to allow for changes to the merge configuration

• Show Split Wire, when selected, displays the Split Wire dialog before combining wires to allow for changes to the split configuration:

– Split into a different net

– Keep connected

• Show GlobalPort Disconnect, when selected, displays the GlobalPort Disconnect dialog before separating wires to allow for changes to the global port configuration
