Ansoft Designer / Ansys Designer 在线帮助文档:


Schematic Editor >
   Port Sources in System Schematics >
       System Port Current Source


System Port Current Source

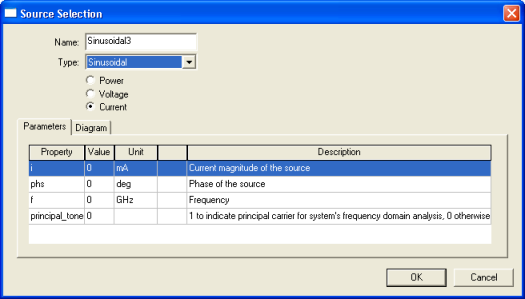

You can set up an interface port to be a current source for the circuit. To specify a current power source value, select the port and click on the Edit button in the Edit Port field, opening the Port Definition dialog box. In the Source Definition panel, click Add. The Source Selection window opens:

• Select Current as the Source type.

• Click in the Name field to assign a name other than the default. In System designs, Port current sources can be Sinusoidal or Multitone Sinusoidal. Sinusoidal is the default. The display above shows the Sinusoidal parameters.

• To see a diagram of the waveform for this source, click the Diagram tab. The diagram is generalized, and does not change when you change parameter values.

• When all data for the source have been entered, click OK.

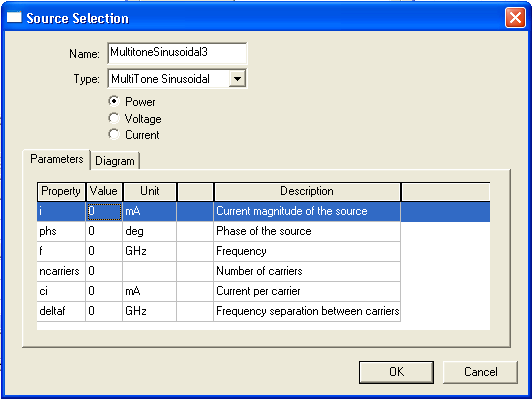

Following are the parameters for the Multitone Sinusoidal Current Source:

• To see a diagram of the waveform for this source, click the Diagram tab. The diagram is generalized, and does not change when you change parameter values.

• When all data for the source have been entered, click OK.
