Link Description Tab

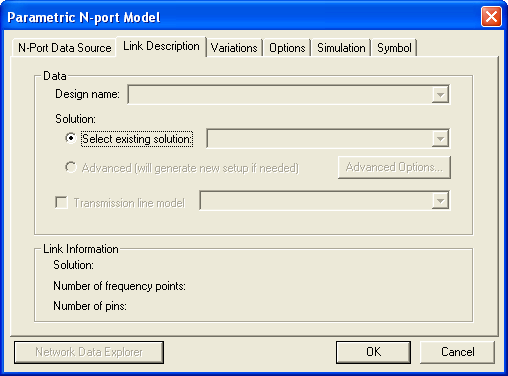

Use the Link Description tab to enter data and link information.

• Design name specifies the top-level design in the HFSS project.

• Solution specifies the solution to be used for the HFSS subcircuit.

• Click Select existing solution to enable the selection field. Select an HFSS solution from the pulldown.

• Transmission line model specifies that the model specified in the pull-down menu at right will be used for transmission lines (HFSS import only)

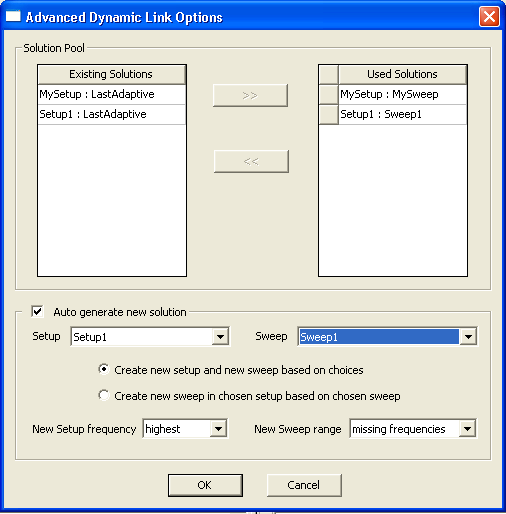

• Click Advanced to specify a custom setup using the Advanced Options button. When Advanced setup has been selected, the Advanced Options button becomes active. Click on the Advanced Options button to open the Advanced Dynamic Link Options dialog:

• Select one or more of the Existing Solutions to use in the simulation.

• Click Auto generate new solution to calculate missing frequency ranges.

• Select the desired Setup and Sweep.

• Use Create new setup to specify that a new setup specification will be defined. This generates a new adaptive mesh for the analysis. Next, use the New Setup frequency field to select the new adaptive frequency for mesh generation: “highest” or “middle”.

• Use Create new sweep to specify that a new sweep specification will be defined using an existing setup. This uses the existing adaptive mesh for the analysis, which saves simulation time. Next, select a New Sweep range: choose “all frequencies” to simulate the entire range of frequencies desired, or choose “missing frequencies” to simulate only the frequencies not listed in the Used Solutions list.

• Network Data Explorer allows you to view and manipulate network data by opening the Network Data Explorer.

Click OK to close the Advanced Dynamic Link Options dialog. When the Link Description has been completed, click OK or select another tab.
