Ansoft Designer / Ansys Designer 在线帮助文档:


Schematic Editor >
   Starting the Schematic Editor >
       Configuring Schematic Editor Options >
           Fonts


Fonts

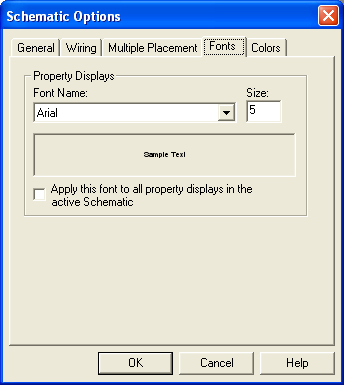

When you select the Fonts tab in the Schematic Options dialog, the following dialog is displayed:

The following controls are available:

• Font Name can be changed to select from various font styles that are displayed in the Schematic Editor

• Size specifies the font size to use in the Schematic Editor

• Sample Text is used to show the font and size you select

• Apply this font ... specifies that all displays in the active editor are to use the font style and size you select
