Ansoft Designer / Ansys Designer 在线帮助文档：

Schematic Editor >
   Starting the Schematic Editor >
       Configuring Schematic Editor Options >
           Colors

Colors

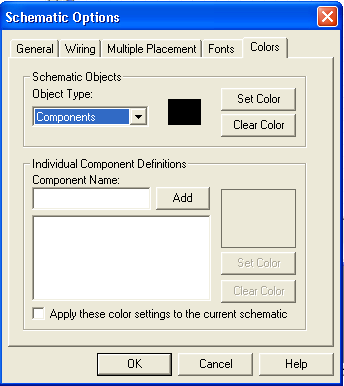

When you select the Colors tab in the Schematic Options dialog, the following dialog is displayed:

The Schematic Objects panel allows you to set the color by object type.

• Object Type is a pulldown to select the object type whose colors you wish to modify. Types are Components, Interface Ports, Page Ports, Global Ports, and Grounds.

• Set Color implements the color you have selected for the object

• Clear Color resets the color of the object to its original default value

The Individual Component Definitions panel lets you set the color for specified objects.

• Component Name is used to identify the object whose colors you wish to modify

• Add allows you to add a component whose colors are not configured

• Set Color implements the color you have selected for the object

• Clear Color resets the color of the object to its original default value

• Apply this color settings ... specifies that all future objects added to the active schematic window display will possess the color you have selected.
