Ansoft Designer / Ansys Designer 在线帮助文档：

Generating Reports and Postprocessing >
   Creating Reports >
       Display Types >
           Statistical Eye Plot

Statistical Eye Plot

To display a statistical eye plot of the load-pull results after a successful analysis:

1. Left click Product > Results (or right-click Results in the Project tree) aand point to a desired report type and then select Statistical Eye Plot from the submenu that appears. The New Report dialog appears.

2. Select the output quantities of interest and click Add Trace.

3. Click Done. A Report window opens to display a graph of the analysis results.

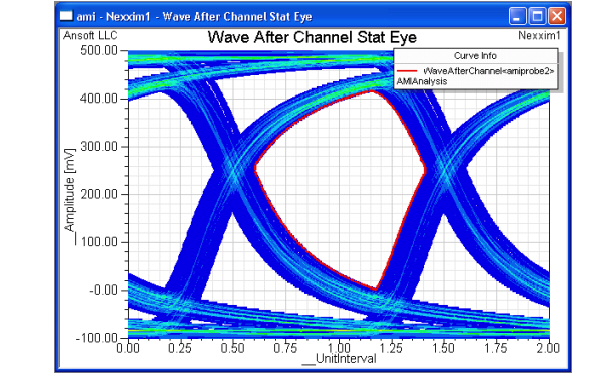

A Statistical Eye Plot resembles the following:
