Ansoft Designer / Ansys Designer 在线帮助文档：

Generating Reports and Postprocessing >
Modifying Reports >
Plotting Imported Solution Data

Plotting Imported Solution Data

1. In the Product menu, select Import Solution. The Import solution dialog opens:

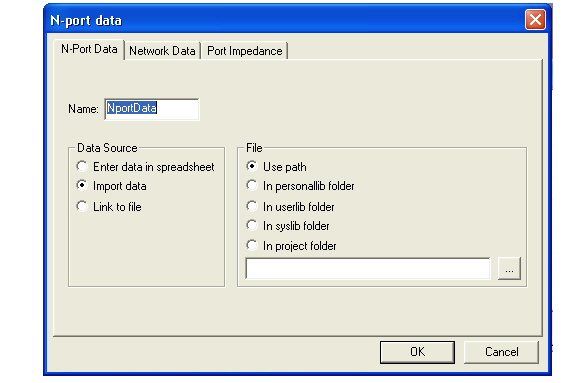

2. If the solution is network data such as S-parameters, click Network Data. The N-Port Data dialog opens:

3. Locate the network data file and then click OK.

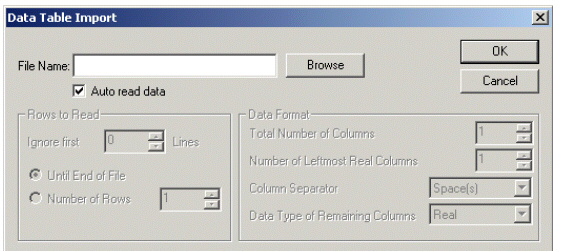

4. If the imported data is in table format, click Table Data on the Import Data dialog. The Data Table Import dialog opens:

5. Locate the data table file and then click OK.

6. Expand Analysis in the Project tree. Verify the presence of the imported solution.

7. Click on Results in the Project tree and select Create Report. Select the report type and display type from the Create Report dialog, and then click OK. On the Traces dialog, select the imported solution from the Solutions pulldown. Complete the data in the Traces dialog, and then click Done. The Report window opens to display the imported solution.
