Phase Animation

1. To prepare for phase animation, you must select the base frequency.

• For surface current and far field overlays, expand the Results icon in the Project window, right-click on the overlay, and select Frequency from the menu. The Frequencies dialog opens:

The list displays the frequencies that were swept in the analysis. Select a frequency from the list; the overlay displays the field values calculated at that frequency. Click OK to leave the overlay at the selected frequency.

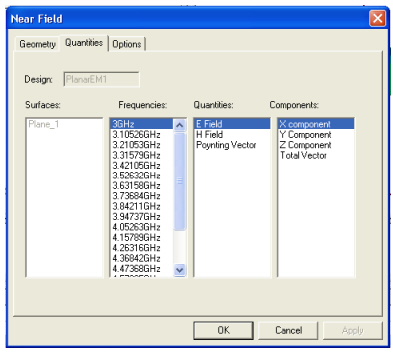

• For near field overlays, expand the Results icon in the Project window, right-click on the overlay, and select Properties from the menu. Use the Quantities tab to select a reference frequency for the phase animation:

Click OK to apply the frequency and close the dialog.

2. To initiate the animation of the overlay that is currently displayed, do one of the following:

• Select Animate from the View menu.

• Expand the Results icon in the Project window, right-click the overlay entry, and select Animate from the menu.

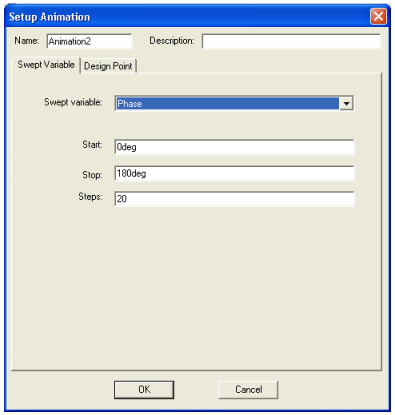

3. If no animations have been defined previously, the Setup Animation dialog opens:

• Specify a name in the Name field (or accept the default, Animationn, where n is a numeral). Optionally, enter a description.

• For a frequency animation, select Phase as the Swept Variable.

• Select the Start and Stop phases in degrees.

• Click OK.

If one or more animations have been defined, selecting Animate from one of the menus opens the Select Animation dialog:

The Select Animation dialog provides the following operations:

• Left-click to select one of the animations and click OK to start that animation.

• Click the New button to open the Setup Animation dialog described above, and close the Select Animation dialog.

• Select an animation and click Delete to delete the definition.

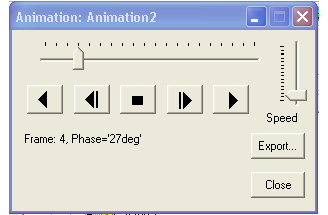

4. Designer calculates the frame data. If the Progress window is displayed, you can monitor the progress of the calculation. When the frames have been calculated, the animation begins and the Animation control panel opens:

• Use the “VCR” buttons to play the animation. From left to right, the buttons are Reverse, Fast Reverse, Stop, Fast Forward, and Forward. The indicator at the top of the dialog shows the progress of the animation. Use the Speed slider to control the speed of the animation.

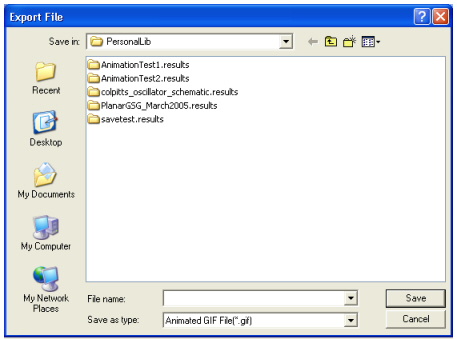

• To export the frame data to a file, click Export. The Export File dialog opens:

Specify the directory and file name. Use the Save as type menu to select the file format (Animated GIF or AVI). Click Save to save the data and close the dialog.

• Click Close on the Animation control panel to stop the animation and close the panel.
