       EM Subdesign Plotting from the Top-Level Design


EM Subdesign Plotting from the Top-Level Design

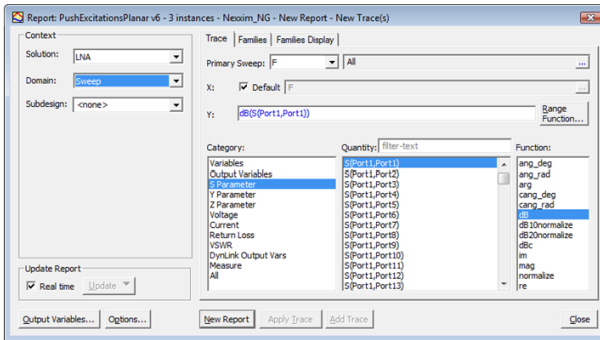

For a Nexxim project with Planar EM subdesigns, you can plot reports from the EM subdesigns directly from the top-level Nexxim design. When the reporter dialog is invoked from the top-level Nexxim design, it contains a drop-down list-box in the upper left Context section that can specify the Subdesign. When the Subdesign selection is set to the <none> default, the domain, categories and quantities shown in the reporter dialog are related to the top level design.

[spacer]

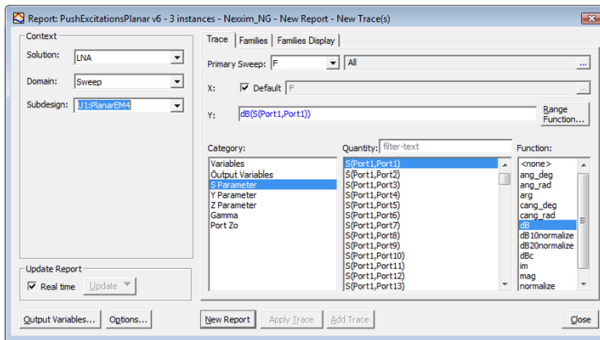

But when the Subdesign selection is set to an EM subdesign, the reporter dialog populates with Category and Quantity values from the subdesign. This allows you to plot the EM responses from the top-level reporter dialog, rather than editing the subdesign and then opening the reporter dialog there.

[spacer]

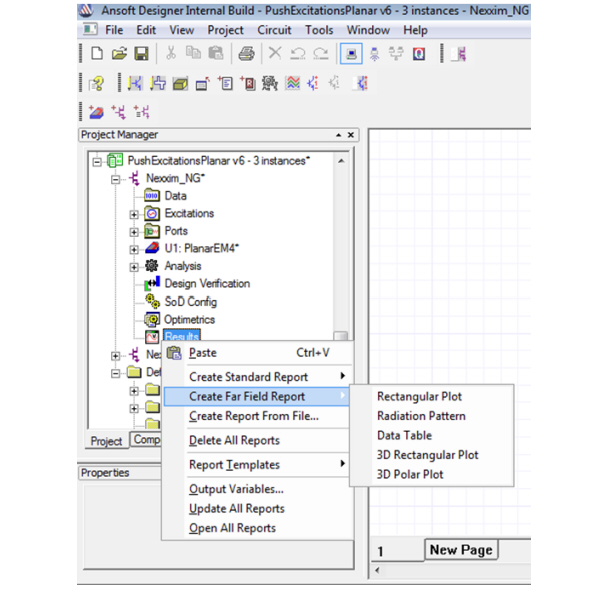

Additionally, you can also plot Far Field reports from the planar EM subdesign.
