Ansoft Designer / Ansys Designer 在线帮助文档：

HFSS and Planar EM Simulators >
HFSS Port Setup in Designer >
   Gap(coax) Ports >
       Terminal Assignments in Gap(coax) Ports


Terminal Assignments in Gap(coax) Ports

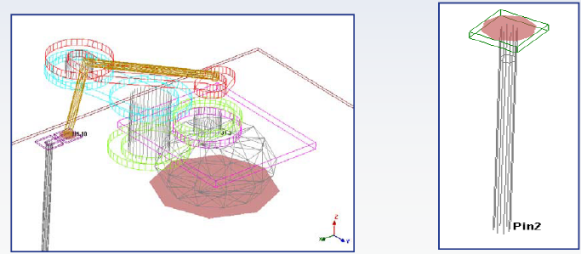

Because the terminal geometry of Gap(coax) ports often originates from unrelated and/or 3D structures, their identification and most validation checks are deferred to post-mesh. The port-solver searches for a valid terminal that is interior to the port-face in order to generate an appropriate field distribution. Various checks are included, and accurate messaging is provided. If applicable, pay particular attention to the Layer Alignment property, since the port face must contain the terminal geometry.
