Multi-Line Transmission Line Ports

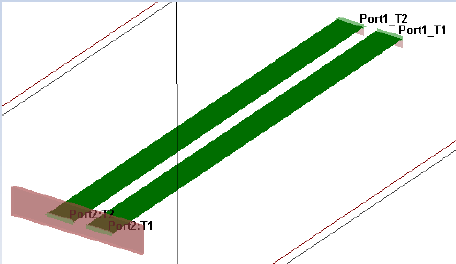

When configuring HFSS ports as multi-line transmission ports, wave ports are created by default, but can be “decoupled” to create a collection of lumped-gap ports. To decouple a multi-line coupled port:

1. Select the port graphically, or click Layout > List and then select the port

2. Click Draw > Decouple Edge Ports

[spacer]



Similarly, ports may also be coupled using Draw > Couple Edge Ports. Edge selection must be co-linear, but can span multiple planes.

The following pre-simulation validation checks apply:

• Geometry intersections

• Floating terminals

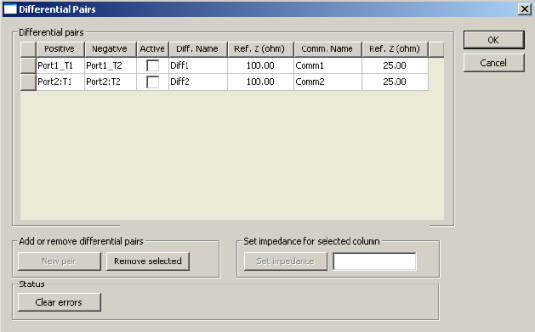

Solution will always be terminal, but differential-pairs may be configured separately using the Differential Pairs dialog.
