HFSS and Planar EM Simulators >
HFSS Port Setup in Designer >
Horizontal Lumped Ports

Horizontal Lumped Ports

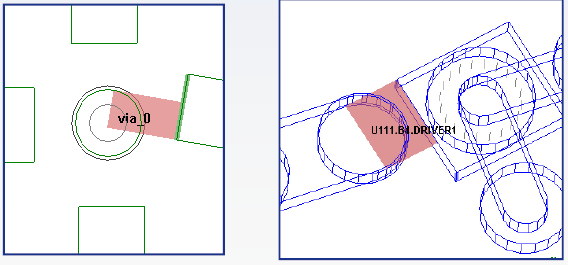

It is possible to configure an HFSS port to be a horizontal lumped port. Any existing edge port or pin may be assigned a reference segment:

1. Select the port you want to assign a reference to, either graphically or by clicking Layout > List

2. Select the reference edge

3. Click Draw > Port > Assign Reference

Reference assignment for an edge-port requires a coplanar and parallel edge to realize valid port-geometry. Reference assignment to a pin can tolerate some geometry overlap.
