Edit Thermal Modifier

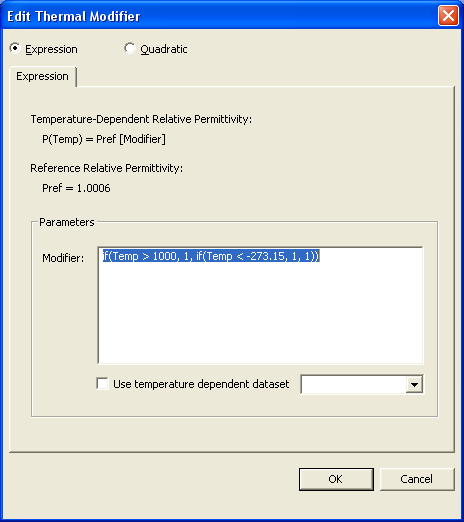

To specify Thermal modifiers for a material, you must select both All Products and Thermal Modifier in the View/Edit materials dialog and then choose Edit rather than None in the Thermal column — this causes the Edit Thermal Modifier dialog to appear.

• For the Parameters Modifier text field, you can write a Thermal modifier.

• Select the Expression radio button to display the Parameters Modifier text field or select the Quadratic radio button to display the Basic and Advanced Coefficients tabs of the Specify Thermal Quadratic Parameters dialog.

• Click OK to accept the edits and return to the View/Edit materials dialog.
