CPW and Slotline Ports

CPW and Slotline Ports are allowed and can be configured in light of the following.

• On a Ground layer, edge selections must be co-linear and co-planar.

• The CPW mode can also be solved on a Signal layer by selecting only the single conductor and sizing the port appropriately.

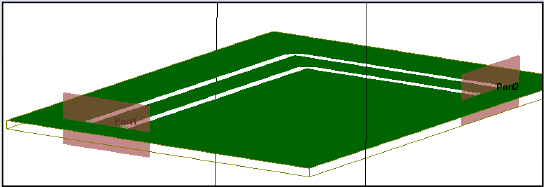

• Slotline excitation with a waveport will not work. However, various configurations using lumped-gap ports are possible.
