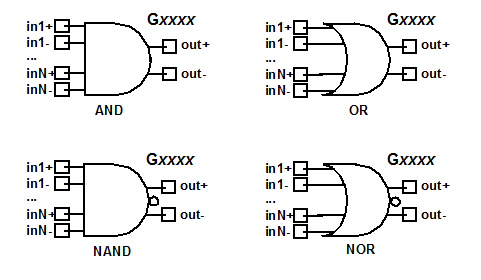

   Voltage-Controlled Current Source, Multi-Input Gate

Voltage-Controlled Current Source, Multi-Input Gate



VCCS Gate Netlist Format

The format for an N-input AND gate VCCS is:

Gxxxx out+ out- [VCCS] AND(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

The format for an N-input NAND gate VCCS is:

Gxxxx out+ out- [VCCS] NAND(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

The format for an N-input OR gate VCCS is:

Gxxxx out+ out- [VCCS] OR(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

The format for an N-input NOR gate VCCS is:

Gxxxx out+ out- [VCCS] NOR(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

out+ and out- are the nodes of the current output. The entry VCCS is the default for the G element type. in1+ in1- ... inN+ inN- are the positive and negative node pairs for the multiple control voltage inputs. The number of input node pairs (N) in the list must be the same as the value specified for AND(N), NAND(N), OR(N), or NOR(N).




Multi-Input Gate VCCS Instance Parameters

Parameter

Description

Unit

Default

DELTA

Distance over which curvature is applied in the interpolation function

Zero produces linear interpolation, positive values produce continuous curvature over the waveform

Maximum is one-half of the smallest difference between control (input) values

None

One-fourth of the smallest difference between control (input) values

M

Multiplier to simulate multiple elements

None

1.0

SCALE

Scale factor for voltage

None

1.0

TC1

Linear (1st-order) temperature coefficient

°K-1

0.0

TC2

Quadratic (2nd-order) temperature coefficient

°K-2

0.0


VCCS Gate Netlist Examples

These two-input examples assume logic “0” is 0.0 mA output at 0.0 volts input, and logic “1” is 5.0 mA output at 5.0 volts input.

Gand2 30 0 VCCS AND(2) 21 0 22 0
+ 0.0 0.0
+ 0.5 0.1e-3
+ 1.0 0.2e-3
+ 4.0 4.5e-3
+ 4.5 4.75e-3
+ 5.0 5.0e-3

Gnand2 40 0 VCCS NAND(2) 23 0 24 0
+ 0.0 5.0e-3
+ 0.5 4.75e-3
+ 1.0 4.5e-3
+ 4.0 0.2e-3
+ 4.5 0.1e-3
+ 5.0 0.0e-3

Gor2 50 0 VCCS OR(2) 25 0 26 0
+ 0.0 0.0e-3
+ 0.5 0.1e-3
+ 1.0 0.2e-3
+ 4.0 4.5e-3
+ 4.5 4.75e-3
+ 5.0 5.0e-3

Gnor2 60 0 VCCS NOR(2) 27 0 28 0
+ 0.0 5.0e-3
+ 0.5 4.75e-3
+ 1.0 4.5e-3
+ 4.0 0.2e-3
+ 4.5 0.1e-3
+ 5.0 0.0e-3

See the examples for the VCVS Multi-Input Gate element for samples of simulation runs produced by these devices.

Notes

The output is specified as a function of the inputs using a set of pairs (minval, outval or maxval, outval), separated by spaces and/or commas. Voltages are specified in volts, currents in amperes. The pairs should be entered in ascending order of minval or maxval (see Netlist Examples). Any number of pairs may be specified.

For AND and NAND gates, the simulator finds the minimum difference between all pairs of inputs:

mindiff = MIN[V(in1+ - in1-), V(in2+ - in2-), ...V(inN+ - inN-)]

The simulator matches mindiff to the list of entries minval1 ... minvalK in the instance statement, and sets the output to the corresponding outval.

When mindiff is equal to the voltage that represents logic “0” or logic “1,” the corresponding output from an AND or NAND gate should be set accordingly.

Values of mindiff that are intermediate between the logic “0” and “1” voltages represent transitional values. For intermediate values that are not in the list of minvals, the simulator calculates the corresponding output by interpolation from the given values. The use of the DELTA parameter allows you to control the curvature of the interpolation to guarantee that the 1st derivative of the curve is continuous.

For values of mindiff that are below the range of listed input voltages, the simulator sets the output current to the one corresponding to the smallest input voltage in the list. For values of mindiff that are above the range of listed input voltages, the simulator sets the output current to the one corresponding to the largest input voltage in the list.

For OR and NOR gates, the simulator finds the maximum difference between all pairs of inputs:

maxdiff = max[V(in1+ - in1-), V(in2+ - in2-), ...V(inN+ - inN-)]

The simulator matches maxdiff to the list of entries maxval1 ... maxvalK in the instance statement, and sets the output to the corresponding outval.

When maxdiff is equal to the voltage that represents logic “0” or logic “1,” the corresponding output from an OR or NOR gate should be set accordingly.

Values of maxdiff that are intermediate between the logic “0” and “1” voltages represent transitional values. For intermediate values that are not in the list, the simulator calculates the corresponding output by interpolation from the given values, using the DELTA parameter as discussed above.

For values of maxdiff that are below the range of listed input voltages, the simulator sets the output current to the one corresponding to the smallest input voltage in the list. For values of maxdiff that are above the range of listed input voltages, the simulator sets the output voltage to the one corresponding to the largest input voltage in the list.
