Voltage-Controlled Current Source, Delay

Voltage-Controlled Current Source, Delay

VCCS Delay Netlist Format

The format for a voltage-controlled current source with delay is:

Gxxxx out+ out- [VCVS] DELAY in+ in- TD=val

[SCALE=val] [TC1=val] [TC2=val]

out+ is the positive node and out- is the negative node of the current source. The entry VCCS is the default for the G element type. The entry DELAY selects the G element delay type. in+ and in- are the positive and negative nodes for the control voltage.

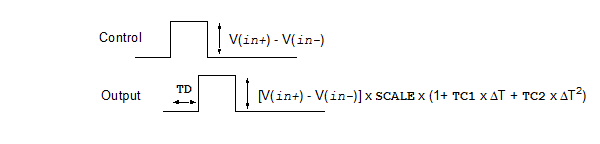

The figure below diagrams the operation of the VCCS delay element:

**Delay VCCS Instance Parameters**
Parameter	Description	Unit	Default
SCALE	Scale factor for current	None	1.0
TC1	Linear (1st-order) temperature coefficient	°K^-1	0.0
TC2	Quadratic (2nd-order) temperature coefficient	°K^-2	0.0
TD	Time delay. Must be ³ 0.	Second	None

VCCS Delay Netlist Example

G23 inplus inminus VCCS DELAY cplus cminus TD=2.0e-5
