   Shorted Stub, Physical Length with Reference

Shorted Stub, Physical Length with Reference



[spacer]



Netlist Form

An instance of an ideal shorted stub, physical length with reference node has the following netlist syntax:

Axxx n1 n2 Z=val K=val P=val A=val F=val COMPONENT=ideal_shorted_stub_physical

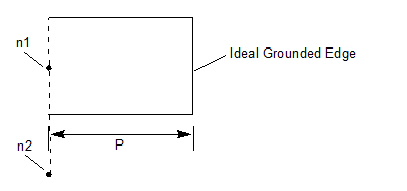

n1 is the name of the node attached to the shorted stub. n2 is the reference node. The entry COMPONENT=ideal_shorted_stub_physical identifies the element as an ideal shorted stub, physical length with or without a reference node.


Ideal Shorted Stub, Physical Length with Reference, Instance Parameters

Parameter

Description

Units

Default

P

Physical length

Meter

0.01

Z

Characteristic impedance

Ohm

50.0

K

Effective dielectric constant



1.0

F

Reference frequency

Hz

1.0e9

A

Attenuation constant at reference frequency

dB/m

0.0


Netlist Example

A44 Port1 Port3 P=10e-3 COMPONENT=ideal_shorted_stub_physical
